    The product selection
    KML

    WITHDRAWAL SLEEVE

    Adapter sleeves and withdrawal sleeves

    Adapter sleeves and withdrawal sleeves are used for fixing bearings with tapered bore on cylindrical shaft. The sleeves facilitate bearing mounting and dismounting and they often simplify the arrangement design. Adapter sleeves are more common and their mounting is more simple than mounting of withdrawal sleeves. Bearings with the withdrawal sleeve need to be rested on non-rolling part, e.g. housing shoulder. Once the withdrawal sleeves are pressed into the bearing bore with a lock nut or lock plate they need to be fixed on the shaft.

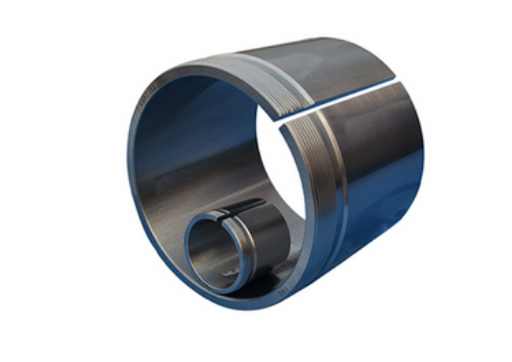

    Withdrawal sleeves

    Withdrawal sleeves are slotted and have a taper surface. Dimensions of the withdrawal sleeves comply with ISO 2982 standard. The withdrawal nuts are not included and they must be ordered separately. Withdrawal sleeves of bigger diameter are produced as standard with oil ducts at the threaded side and an oil distributor grooves on the outside surface as well as the bore – designation AOH.
